The FS-400 Digital Laboratory Disperser is a compact 400W high-speed lab disperser designed for small sample mixing, pigment dispersion, formulation testing, and laboratory research. With a 0–8000 rpm speed range, digital display, and removable dispersing disc, it is suitable for paint, ink, pigment paste, coating, resin, adhesive, cosmetic, and chemical sample preparation.
Compared with standard 350W laboratory dispersers, the FS-400 Digital offers a higher maximum speed, making it a practical choice for users who need faster dispersion and more flexible speed control in laboratory applications.
Key Features of FS-400 Digital Laboratory Disperser
400W Carbon Brush Motor
The 400W carbon brush motor provides stable power for small sample mixing and laboratory dispersion applications.
0–8000 rpm High-Speed Range
The speed can be adjusted from 0 to 8000 rpm, making this model suitable for laboratory samples that require higher-speed dispersion.
Digital Display
The digital display helps users monitor the operating speed clearly during mixing and dispersion.
Removable Dispersing Disc
The removable disc design makes cleaning, replacement, and daily maintenance more convenient.
Compact Laboratory Design
With a compact structure and small footprint, the FS-400 Digital is suitable for laboratories, universities, R&D centers, and small testing workspaces.
Suitable for Small Sample Testing
The machine supports 1–10 kg processing capacity, based on water reference. Actual capacity may vary depending on material viscosity and testing conditions.

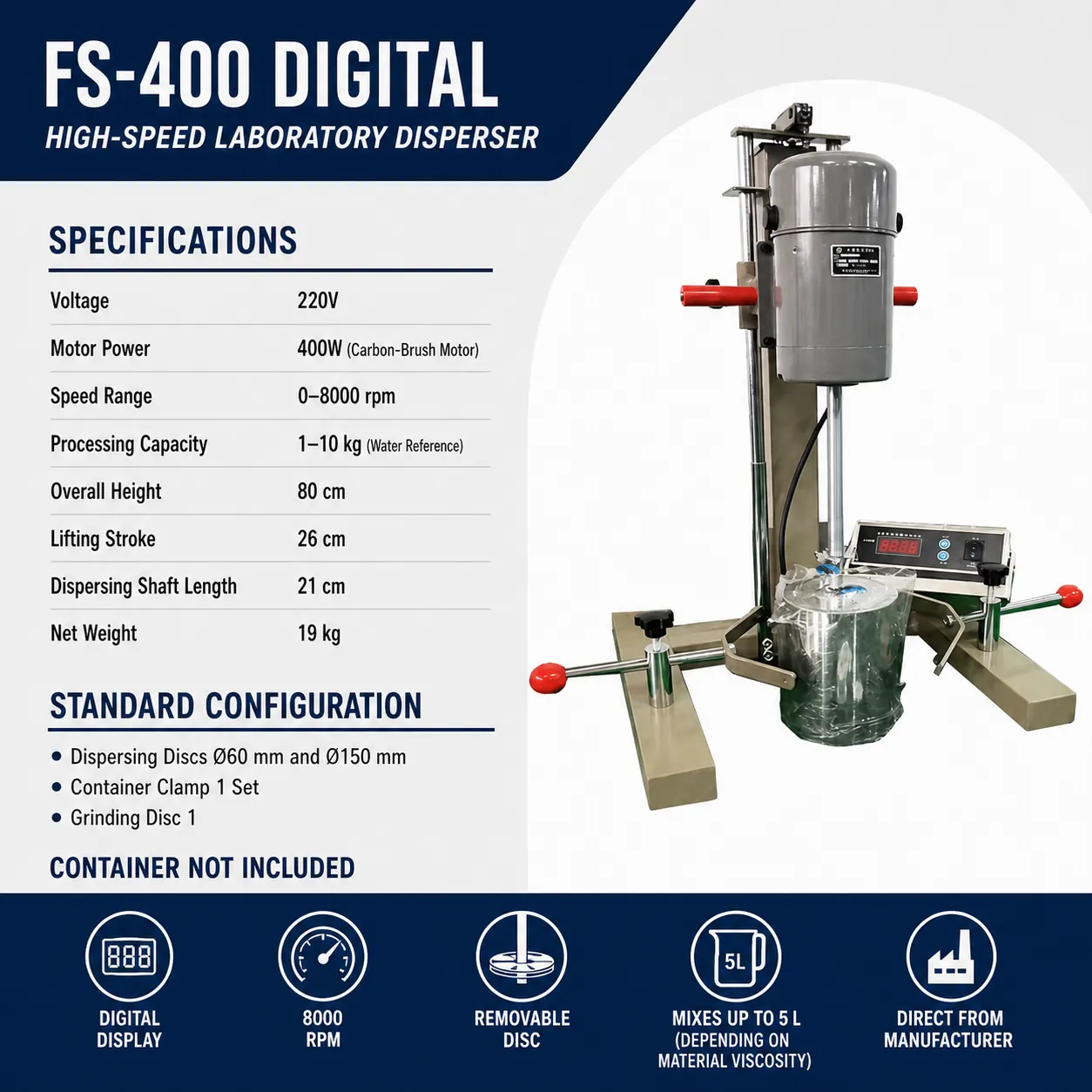

Technical Specifications
| Item | Specification |
|---|---|
| Model | FS-400 Digital |
| Product Type | 400W Digital Laboratory Disperser |
| Voltage | 220V |
| Motor Power | 400W carbon brush motor |
| Speed Range | 0–8000 rpm |
| Processing Capacity | 1–10 kg, water reference |
| Suggested Mixing Volume | Up to 5L, depending on material viscosity |
| Overall Height | 80 cm |
| Lifting Stroke | 26 cm |
| Dispersing Shaft Length | 21 cm |
| Dispersing Disc | Ø60 mm and Ø150 mm |
| Container Clamp | 1 set |
| Grinding Disc | 1 pc |
| Net Weight | 19 kg |
| Display | Digital display |
| Disc Type | Removable disc |
| Container | Not included |
Applications
The FS-400 Digital Laboratory Disperser is suitable for laboratory mixing and dispersion of:
- Paint and coating samples
- Ink and pigment paste
- Color paste and dyes
- Resin and emulsion
- Adhesive and glue samples
- Cosmetic materials
- Chemical liquids
- Small batch formulation testing
- Laboratory R&D applications
Why Choose FS-400 Digital Laboratory Disperser?
The FS-400 Digital is suitable for users who need a compact laboratory disperser with higher speed capability. Its 400W motor, 0–8000 rpm speed range, digital display, and removable dispersing disc make it ideal for small sample testing and laboratory formulation work.
Compared with 350W basic lab dispersers, this model offers a higher maximum speed. Compared with 680W automatic lift lab dispersers, it is more compact and suitable for smaller laboratory samples.
FAQ
What is the main advantage of the FS-400 Digital Laboratory Disperser?
The main advantage is its 0–8000 rpm high-speed range with digital display, making it suitable for laboratory samples that require faster dispersion.
What is the motor power of this model?
The FS-400 Digital is equipped with a 400W carbon brush motor.
What is the processing capacity?
The processing capacity is 1–10 kg based on water reference. Actual capacity may vary depending on material viscosity and testing requirements.
What materials can this lab disperser process?
It can be used for paint, coating, ink, pigment paste, resin, adhesive, emulsion, cosmetic samples, and chemical liquids.
What is the difference between FS-400 Digital and 350W lab dispersers?
The FS-400 Digital has a higher maximum speed of 8000 rpm, while many 350W lab dispersers are positioned for basic small sample testing.
Is the container included?
No. The container is not included with the standard configuration.
