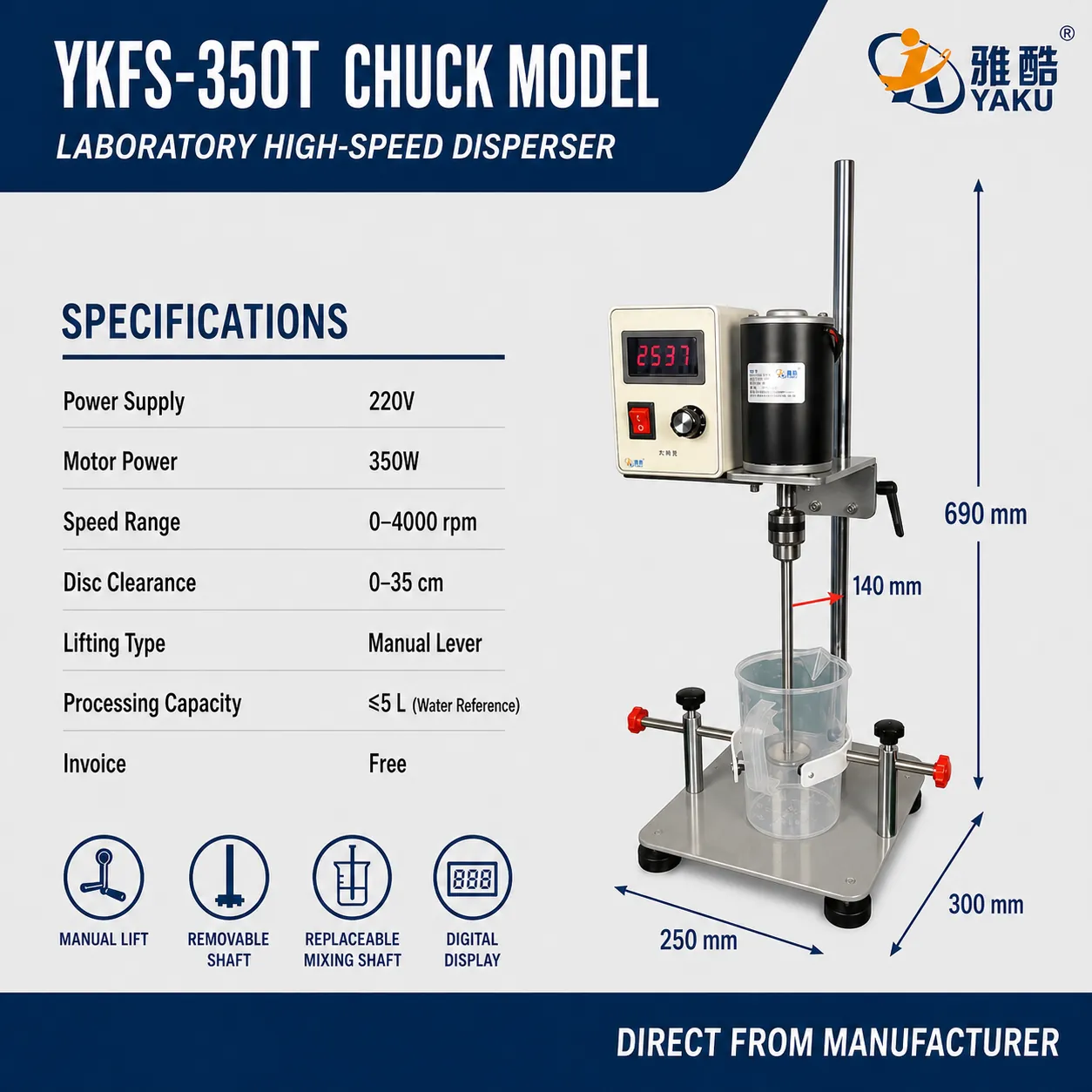

The YKFS-350T Chuck Type Laboratory Disperser is a compact lab dispersing machine designed for sample preparation, formula development, small batch mixing, and laboratory testing.
Compared with basic laboratory dispersers, this chuck type model features a removable shaft, digital speed display, and manual lever lifting system, making it more flexible for laboratories that need to test different materials or change mixing tools frequently.
Equipped with a 350W motor and 0–4000 rpm adjustable speed control, the YKFS-350T is suitable for mixing and dispersing low to medium viscosity materials such as paint, ink, pigment paste, coating, resin, adhesive, emulsion, cosmetic samples, and chemical liquids.
Key Features
Chuck Type Design
The chuck structure allows the dispersing shaft to be removed or replaced conveniently. This makes the machine suitable for different laboratory testing tasks and different mixing tools.
Digital Speed Display
The built-in digital display helps users monitor the working speed clearly during operation, making the mixing and dispersing process more accurate and easier to control.
Removable Shaft
The removable shaft design improves flexibility, especially for laboratories that work with multiple materials, small batches, or different testing containers.
0–4000 rpm Adjustable Speed
The speed can be adjusted from 0 to 4000 rpm, allowing users to select the proper speed according to material viscosity, batch size, and dispersion requirements.
Manual Lever Lifting
The manual lever lifting system makes height adjustment simple and efficient, suitable for daily laboratory use.
Compact Laboratory Structure
With a small base and vertical structure, this chuck type lab disperser is easy to place on a laboratory bench and suitable for limited workspace.
Technical Specifications
| Item | Specification |
|---|---|
| Model | YKFS-350T Chuck Model |
| Product Type | Chuck Type Laboratory Disperser |
| Power Supply | 220V |
| Motor Power | 350W |
| Speed Range | 0–4000 rpm |
| Chuck / Disc Clearance | Φ3–35 mm |
| Lifting Type | Manual Lever |
| Processing Capacity | ≤5L, water reference |
| Display | Digital Speed Display |
| Shaft Type | Removable Shaft |
| Base Size | 250 × 300 mm |
| Overall Height | 690 mm |
| Suitable Use | Laboratory testing and small batch mixing |
Applications
The YKFS-350T chuck type laboratory disperser is suitable for:
Paint and coating dispersion
Ink and pigment mixing
Color paste testing
Resin and emulsion blending
Adhesive and glue preparation
Cosmetic sample mixing
Chemical liquid testing
Small batch formulation development
Laboratory R&D applications
Why Choose the YKFS-350T Chuck Type Lab Disperser?
The YKFS-350T is suitable for users who need more flexibility than a basic lab disperser. Its chuck type structure makes shaft replacement easier, while the digital speed display helps users monitor and adjust the working speed more accurately.
For laboratories that handle different materials, test multiple formulas, or need frequent shaft replacement, this model is a practical choice. It combines compact size, adjustable speed, removable shaft design, and digital display in one small laboratory disperser.
FAQ
What is the main advantage of the YKFS-350T Chuck Type Laboratory Disperser?
The main advantage is the chuck type removable shaft design, which allows users to remove or replace the shaft more conveniently for different laboratory testing applications.
What is the difference between YKFS-350 Basic and YKFS-350T Chuck Model?
The YKFS-350 Basic is an entry-level lab disperser for simple mixing and dispersion. The YKFS-350T Chuck Model has a digital speed display and removable shaft, making it more suitable for users who need flexible operation.
What materials can this chuck type lab disperser handle?
It can be used for paint, coating, ink, pigment paste, resin, adhesive, emulsion, cosmetic samples, and chemical liquid testing.
What is the processing capacity?
The processing capacity is up to 5L, based on water reference. Actual capacity may vary depending on material viscosity and process requirements.
Is this machine suitable for small batch production?
Yes. The YKFS-350T is suitable for laboratory testing, sample preparation, formula development, and small batch production trials.
