YKFS-1.1R High-Shear Emulsifier Mixer
The YKFS-1.1R high shear emulsifier mixer is a compact 1.1 kW machine for formulation development, pilot trials and compatible small-batch emulsifying, homogenizing and dispersing work. It combines a brushless motor with variable-frequency speed control, a hand-crank lifting stand and an 80 mm working head.
The published processing capacity is up to 25 liters, depending on the viscosity and behavior of the material. Before ordering, confirm the material, working volume, vessel dimensions and required process result so the machine and working head can be reviewed together.
Request a YKFS-1.1R configuration quote
Key Features
High-Shear Emulsifying and Dispersing Action
The 80 mm working head is designed to apply high shear to compatible liquid-liquid and liquid-solid material systems. It can support laboratory formulation work and small-batch process evaluation where more intensive mixing is required than conventional low-speed stirring.
0–3000 rpm Variable-Frequency Control
The VFD provides adjustable operation across the specified speed range. Operators can begin at a lower speed for material loading and then adjust the operating speed according to circulation, viscosity and the required result.
1.1 kW Brushless Motor
The machine uses a 1.1 kW brushless motor and is presented as a quiet-running configuration. Actual load and suitable operating speed still depend on the formulation, working-head load and batch conditions.
Hand-Crank Lifting Stand
The hand-crank mechanism provides a lifting stroke from 25 to 480 mm. Vertical adjustment helps position the working head for different vessels and provides access during loading, vessel changes and cleaning.
Adjustable Vessel Positioning
The base has an inner width of 33 cm and includes adjustable vessel clamps visible in the product configuration. Confirm the container diameter, height and opening before ordering.

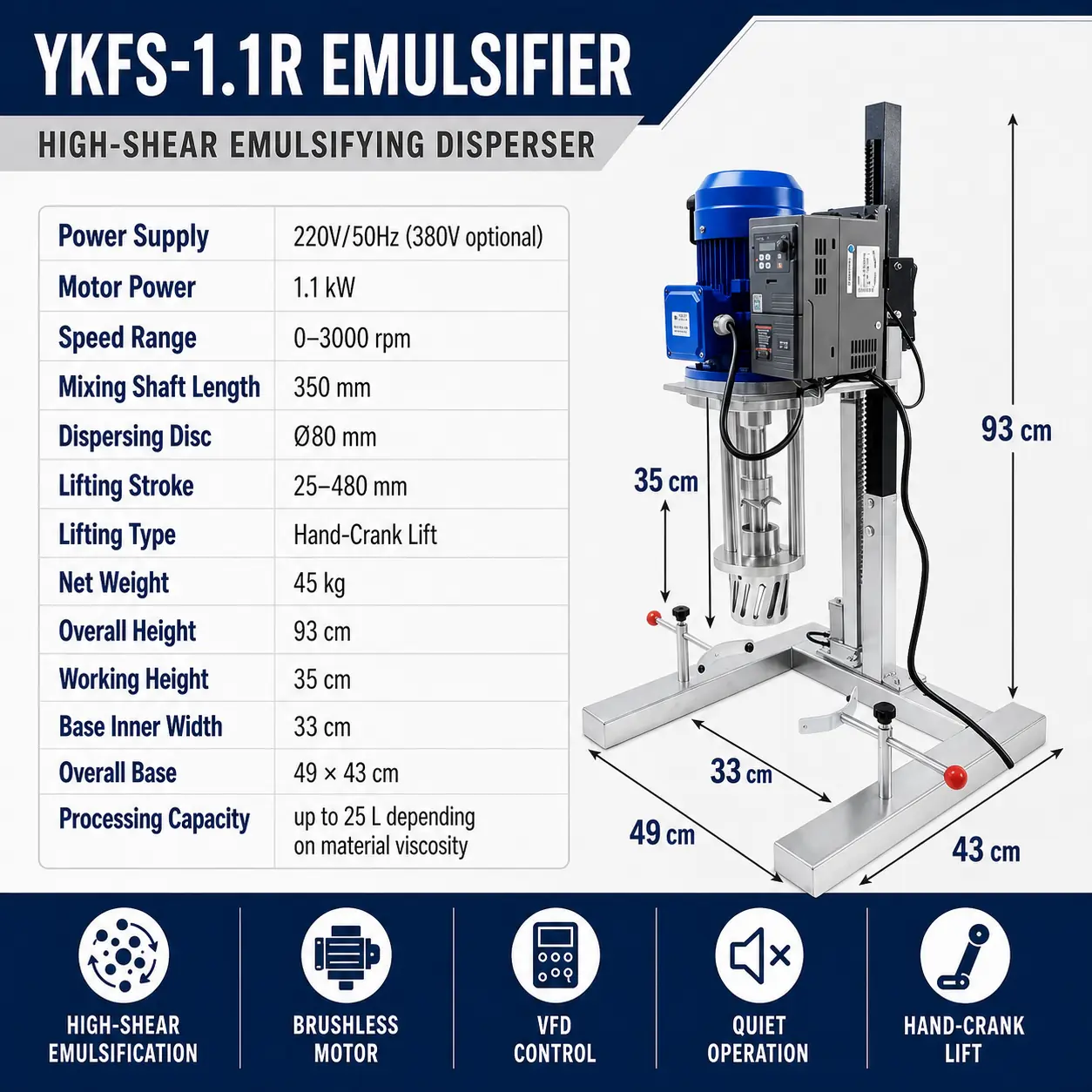

Technical Specifications
| Model | YKFS-1.1R |
|---|---|
| Equipment Type | High-shear emulsifying disperser |
| Power Supply | 220V / 50Hz; 380V optional |
| Motor Power | 1.1 kW |
| Speed Range | 0–3000 rpm |
| Speed Control | Variable-frequency drive (VFD) |
| Mixing Shaft Length | 350 mm |
| Working Head / Dispersing Tool | 80 mm diameter |
| Lifting Type | Hand-crank lift |
| Lifting Stroke | 25–480 mm |
| Overall Height | 93 cm |
| Working Height | 35 cm |
| Base Inner Width | 33 cm |
| Overall Base Size | 49 × 43 cm |
| Net Weight | 45 kg |
| Reference Processing Capacity | Up to 25 L, depending on material viscosity |
Capacity notice: The 25 L value is a reference maximum, not a guaranteed working volume for every formulation. Actual capacity depends on viscosity, density, vessel geometry, working-head immersion and operating conditions.
Typical Applications
The YKFS-1.1R may be considered for compatible laboratory and small-batch processes such as:
- Emulsion formulation and process trials
- Creams, lotions, gels and compatible cosmetic formulations
- Sauces, liquid ingredients and compatible food-development samples
- Resins, emulsions and compatible chemical liquids
- Coating, ink and pigment formulation trials requiring high shear
- Adhesive and sealant development where the viscosity fits the machine configuration
Material compatibility and the required final result should be reviewed before the product is ordered. For higher viscosity, vacuum processing or temperature-control requirements, a different mixer or vessel configuration may be more suitable.
What to Confirm Before Ordering
- Material: Product name, main ingredients and whether it is corrosive or flammable.
- Viscosity: Approximate viscosity with units and whether it changes during processing.
- Batch volume: Minimum and maximum working volume.
- Vessel: Inside diameter, height and opening diameter.
- Target result: Required uniformity, droplet or particle result, and expected processing time.
- Electrical supply: Voltage, phase and frequency at the installation site.
You can send photos or a short video of the material instead of shipping a sample internationally for the initial equipment review.
Frequently Asked Questions
Can the YKFS-1.1R always process 25 liters?
No. The stated capacity is up to 25 L and depends on material viscosity. High-viscosity or high-density materials can increase the load and reduce the practical batch volume.
Does the speed controller provide adjustable speed?
Yes. The supplied specification lists VFD control with an operating range of 0–3000 rpm.
Is 380V available?
The supplied specification lists 220V/50Hz with 380V as an option. Confirm the required voltage, phase and frequency in the final quotation.
How do I know whether the vessel will fit?
Provide the vessel diameter, height and opening. The machine has a 33 cm base inner width, but the complete fit also depends on the clamp position, working-head location and required immersion depth.
Is this a vacuum emulsifier?
No vacuum system is shown or specified for this model. If your material requires vacuum de-aeration, review YAKU’s vacuum disperser configurations or request a suitable solution.
Request a High-Shear Emulsifier Mixer Quote
Send your material name, viscosity, batch volume, vessel dimensions, target result and electrical supply. YAKU will help you review whether the YKFS-1.1R high shear emulsifier mixer is suitable or whether another configuration is more appropriate.
Send your process requirements or compare other YAKU mixing equipment.
