Product Overview

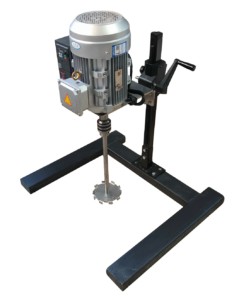

The YKFS-1.1 Manual Lift Disperser is a heavy-duty, industrial-grade high-speed disperser designed for pilot production and small-scale manufacturing. Powered by a high-torque 1.1KW brushless motor and managed by a precision VFD (Variable Frequency Drive) controller, this machine handles volumes up to 25L with ease. Its robust manual crank lift system and high-concentricity integrated shaft make it a reliable choice for demanding mixing environments where stability and power are paramount.
Key Specifications
| Specification | Value |
| Model | YKFS-1.1 Manual Lift Series |
| Motor Power | 1.1 KW (Brushless) |
| Voltage | 220V/50Hz (Optional 380V available) |
| Speed Range | 0 – 3,000 r/min |
| Max Capacity | ≤ 25L (Subject to material viscosity) |
| Lift Stroke | 25 – 480 mm |
| Dispersion Shaft | 350 mm Integrated Shaft |
| Dispersion Disc | 100 mm Diameter |
| Machine Dimensions | 49 cm × 42 cm × 83 cm |
| Total Weight | 25 kg |
Standard Package Includes
-
YKFS-1.1 High-Torque Main Unit
-
100 mm Dispersion Disc
-
350 mm Integrated Stainless Steel Shaft
-
Industrial Barrel Clamp Set
-
Operation Manual & Quality Certificate
Key Features
-
Brushless VFD Silent Technology
Features an advanced brushless motor paired with a frequency converter for ultra-quiet operation and stepless speed adjustment (0-3000 RPM) while maintaining high energy efficiency.
-
High-Precision Integrated Shaft
Unlike standard split-shaft designs, the integrated shaft ensures superior concentricity and stability, significantly reducing vibration during high-speed rotation.
-
Extended 480mm Lift Stroke
The versatile manual crank lift system offers a broad adjustment range from 25mm to 480mm, accommodating a wide variety of container heights and sizes.
-
Heavy-Duty Stability
With a total weight of 25kg and a 42cm-wide base, the machine provides a rock-solid foundation for continuous industrial work.
-
Industrial Material Grade
Built with corrosion-resistant components designed for long-term durability in chemical and manufacturing settings.
Typical Applications
-
Paints, Coatings & Specialty Inks
-
Industrial Adhesives & Sealants
-
Cosmetic Emulsions & Personal Care
-
Chemical & Pharmaceutical Pilot Production
Why Choose YKFS-1.1?
-
✔ Manufacturer Direct — Authentic factory-direct pricing and technical support.
-
✔ 365-Day Full Warranty — Comprehensive one-year quality guarantee for peace of mind.
-
✔ High Volume Capacity — Designed for batches up to 25L, bridging the gap between lab and factory.
-
✔ Flexible Power Options — Compatible with standard 220V or industrial 380V power supplies.
For technical assistance or bulk order inquiries, please reach out via the store chat or email.
