Product Overview

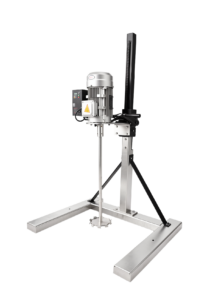

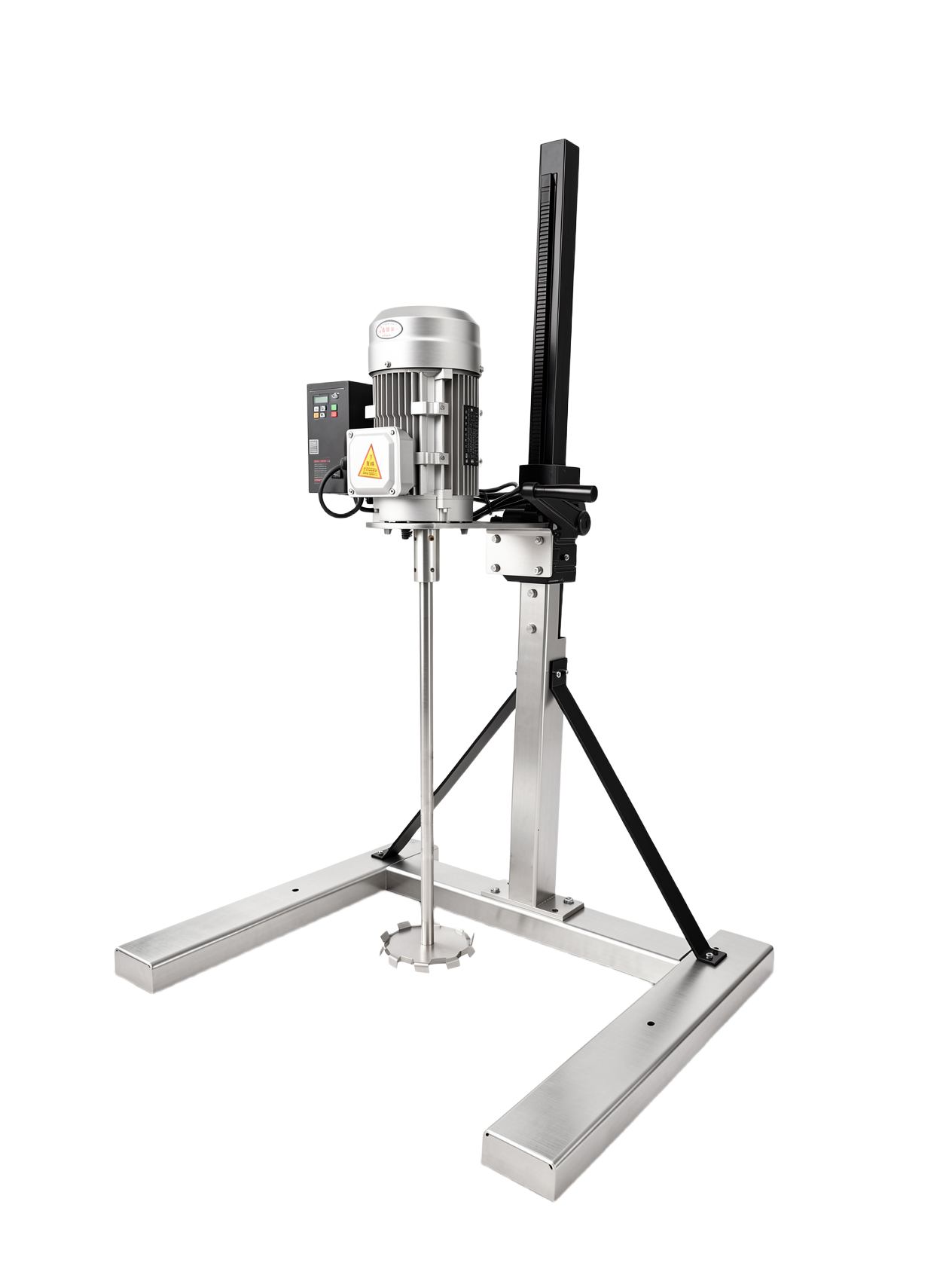

The YKFS-1.5 Industrial High-Speed Disperser is a robust, manual-lift solution engineered for efficient mixing, dispersing, and homogenizing of industrial-grade materials. With a high-torque 1.5KW brushless motor and a flexible processing capacity of up to 50L, it is the professional choice for pilot-scale production, paints, coatings, and chemical R&D labs.
Key Specifications
| Specification | Value |
| Motor Power | 1.5 KW |
| Voltage | 220V (Optional 380V) |
| Speed Range | 0 – 3,000 RPM |
| Speed Control | Variable Frequency Drive (VFD) |
| Max Capacity | ≤ 50L (Depending on viscosity) |
| Overall Height | 100 cm |
| Lift Stroke | 45 cm |
| Dispersion Shaft | $\phi$ 20mm × 400mm (Stainless Steel) |
| Dispersion Disc | 120mm Diameter (304 Stainless Steel) |
| Base Dimensions | 42 cm × 52 cm |
| Total Weight | 30 kg |
Standard Package Includes
-
YKFS-1.5 1.5KW High-Torque Main Unit
-
120mm 304 Stainless Steel Dispersion Disc (Default)
-
400mm Integrated Stainless Steel Dispersion Shaft
-
Manual Crank Lift Stand
-
Industrial Barrel Clamp Set
Key Features
-
High-Power Brushless Silent Operation
Combines a powerful 1.5KW motor with brushless technology to ensure quiet, continuous industrial use with minimal vibration and high torque output.
-
Precise Frequency Conversion Control
Equipped with an advanced VFD controller for stepless speed adjustment (0-3000 RPM), allowing for exact process replication and material handling.
-
Robust Manual Crank Lift
A generous 45cm lift stroke controlled by a durable manual crank, allowing for quick positioning across various container sizes.
-
Integrated One-Piece Shaft Design
The dispersion shaft is designed as a single integrated unit to achieve higher concentricity and stability during high-speed rotation.
-
Customizable Disc Options
Optional 3-blade or 4-blade discs are available to suit specific mixing and shearing requirements for different viscosities.
Typical Applications
-
Industrial Paints & Coatings
-
Large-Batch Epoxy Resin & Bubble Removal
-
Adhesives & Chemical Processing
-
Cosmetic & Pharmaceutical Homogenization
Why Choose YKFS-1.5?
-
✔ Direct from Manufacturer — Authentic YAKU engineering with no middleman markup.
-
✔ 365-Day Quality Warranty — Full support from our technical factory team.
-
✔ Industrial Grade Components — 304 Stainless steel contact parts for corrosion resistance.
-
✔ Heavy-Duty Build — 30kg solid frame ensures stability at high RPMs.
-
✔ Fast Dispatch & Worldwide Shipping — Professionally packaged for international delivery.
