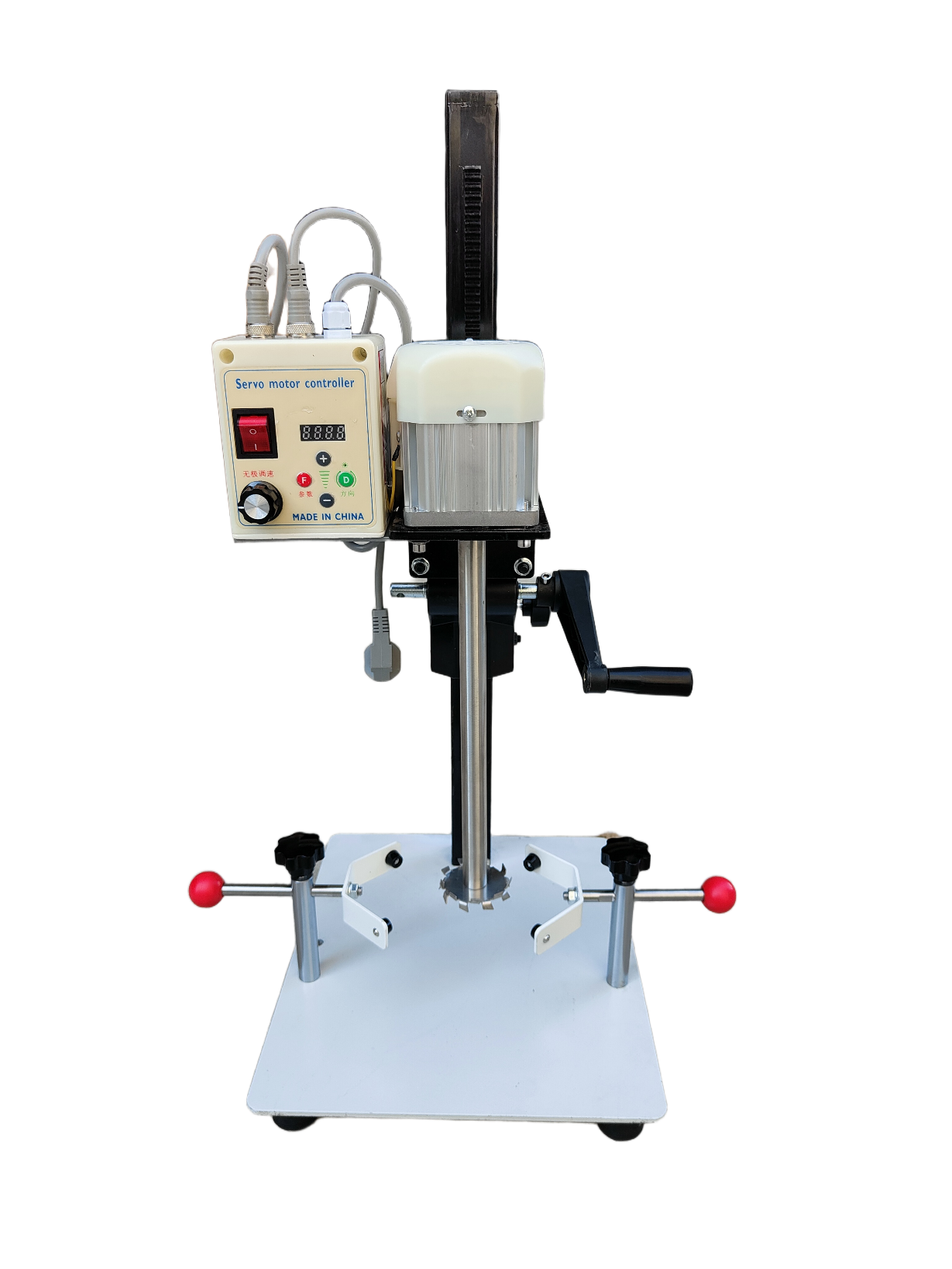

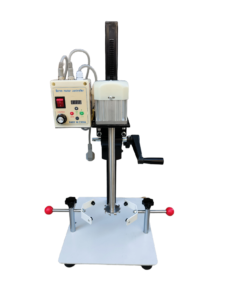

Product Overview
The YAKU FS-750 Manual Lift Disperser is a high-performance laboratory solution engineered for precision mixing and high-shear dispersion. Featuring a powerful 750W brushless motor and a unique reversible rotation function, this model offers unmatched versatility for complex R&D projects. The manual crank system provides tactile control over the 40cm lift stroke, making it a reliable workhorse for small-batch chemical, cosmetic, and coating applications.
Key Specifications
| Specification | Value |
| Model | FS-750 Manual Lift Series |
| Motor Power | 750W (Brushless) |
| Voltage | 220V |
| Speed Range | 0 – 6,500 r/min |
| Rotation | Reversible (Bi-directional) |
| Lift Method | Manual Crank Lift |
| Lift Stroke | 0 – 40 cm |
| Dispersion Shaft | $\phi$ 20mm × 300mm (304 Stainless Steel) |
| Dispersion Disc | 6 cm Diameter (304 Stainless Steel) |
| Machine Dimensions | 30 cm × 35 cm × 72 cm |
| Total Weight | 14 kg |
Standard Package Includes
-
FS-750 High-Torque Main Unit
-
6cm 304 Stainless Steel Dispersion Disc
-
300mm Integrated Stainless Steel Shaft
-
Precision Manual Crank Handle
-
Industrial Barrel Clamp Set
Key Features
-
Reversible Rotation Capability
Equipped with a reversible motor function to allow for multi-directional mixing, ideal for difficult-to-disperse materials and specialized chemical formulations.
-
High-Efficiency Brushless Motor
The 750W brushless motor provides stable frequency-converted speed control up to 6,500 RPM, ensuring low maintenance and energy efficiency.
-
Precision Manual Crank Lift
A 40cm lift stroke controlled by a robust manual handle, offering the operator immediate feedback and precise height positioning for various container sizes.
-
Integrated Shaft Design
Features a one-piece integrated shaft for significantly higher concentricity, reducing vibration and increasing the lifespan of the equipment.
-
Tool-Free Disc Replacement
The dispersion disc is designed for quick disassembly and replacement, streamlining your workflow during color changes or cleaning.
Typical Applications
-
Paints & High-Performance Coatings
-
Advanced Adhesives & Sealants
-
Pharmaceutical & Cosmetic Homogenization
-
Digital Inks & Specialty Dyes
Why Choose YAKU?
-
✔ Manufacturer Direct: Direct from our production line to your lab with no middleman markups.
-
✔ 365-Day Quality Warranty: We stand behind our engineering with a full year of quality protection.
-
✔ Industrial Grade Materials: All contact parts are made of high-quality 304 stainless steel.
-
✔ Optimized for Export: Global shipping standards with secure, reinforced packaging.
