The YKFS-350Y Hand Crank Laboratory Disperser is designed for laboratory sample preparation, small batch testing, and R&D formulation development. Equipped with a 350W motor, digital display, and 0–4000 rpm adjustable speed range, this lab disperser provides stable performance for mixing and dispersing low to medium viscosity materials.
Compared with basic laboratory dispersers, the YKFS-350Y uses a hand-crank lifting system, allowing users to adjust the working height more smoothly and accurately. This makes it suitable for laboratories that require stable lifting control during paint, ink, pigment, coating, resin, adhesive, emulsion, cosmetic, and chemical sample testing.
With a compact structure and processing capacity of up to 5L, this hand crank lab disperser is ideal for research labs, universities, coating labs, ink labs, chemical laboratories, and small-scale production workshops.
Key Features
Hand-Crank Lift Design
The hand-crank lifting system allows smoother and more controlled height adjustment compared with simple manual lifting structures. It is suitable for daily laboratory testing and small sample operation.
Digital Speed Display
The built-in digital display allows users to monitor the working speed clearly during mixing and dispersion.
0–4000 rpm Adjustable Speed
The speed can be adjusted from 0 to 4000 rpm, making the machine suitable for different materials, viscosities, and testing requirements.
350W Laboratory Motor
The 350W motor provides practical power for small batch laboratory mixing, paint dispersion, ink preparation, and pigment testing.
Compact Lab Structure
The compact vertical design saves laboratory space and is suitable for benchtop or small workshop use.
Suitable for Small Sample Testing
With a processing capacity of up to 5L, the YKFS-350Y is suitable for formula testing, sample preparation, and small batch dispersion.

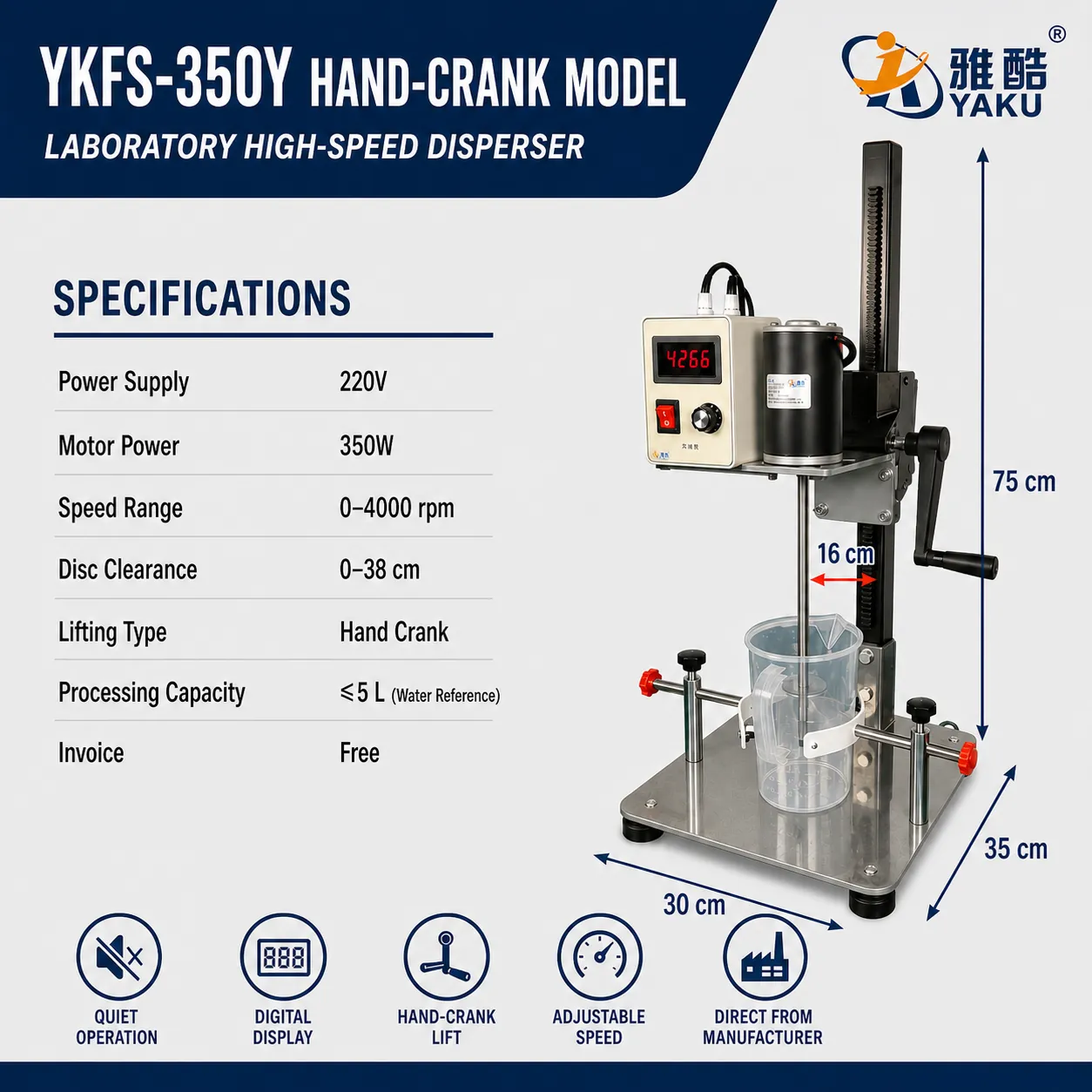

Technical Specifications
| Item | Specification |
|---|---|
| Model | YKFS-350Y Hand-Crank Model |
| Product Type | Hand Crank Laboratory Disperser |
| Power Supply | 220V |
| Motor Power | 350W |
| Speed Range | 0–4000 rpm |
| Disc Clearance | 0–38 cm |
| Lifting Type | Hand Crank |
| Processing Capacity | ≤5L, water reference |
| Display | Digital Display |
| Speed Control | Adjustable Speed |
| Overall Height | 75 cm |
| Base Size | 30 × 35 cm |
| Suitable Use | Laboratory testing and small batch mixing |
Applications
The YKFS-350Y hand crank laboratory disperser is suitable for:
Paint sample dispersion
Ink preparation
Pigment paste testing
Color paste mixing
Coating formulation development
Resin and emulsion blending
Adhesive and glue sample testing
Cosmetic sample preparation
Chemical liquid mixing
Laboratory R&D testing
Why Choose YKFS-350Y Hand Crank Laboratory Disperser?
The YKFS-350Y is suitable for users who need a compact laboratory disperser with more stable height adjustment. Its hand-crank lift structure provides better control during operation, while the digital display helps users monitor speed more clearly.
Compared with the YKFS-350 Basic Laboratory Disperser, this model offers a more controlled lifting method and digital display. Compared with the YKFS-350 Beaker Clamp Laboratory Disperser, the YKFS-350Y is more focused on general small batch laboratory dispersion rather than fixed beaker testing.
FAQ
What is the main advantage of the YKFS-350Y Hand Crank Laboratory Disperser?
The main advantage is the hand-crank lifting system, which allows smoother and more controlled height adjustment during laboratory mixing and dispersion.
What is the difference between the YKFS-350Y and YKFS-350 Basic model?
The YKFS-350 Basic is an entry-level lab disperser, while the YKFS-350Y features a hand-crank lift and digital display, making it more convenient for users who need better lifting control and speed monitoring.
What materials can this hand crank lab disperser process?
It can be used for paint, ink, pigment paste, coating, resin, adhesive, emulsion, cosmetic samples, and chemical liquids.
What is the processing capacity?
The processing capacity is up to 5L, based on water reference. Actual capacity may vary depending on material viscosity and process requirements.
Is this machine suitable for production?
This model is mainly designed for laboratory testing, sample preparation, and small batch trials. For larger production capacity, a 1.1kW, 1.5kW, or industrial high-speed disperser is more suitable.
