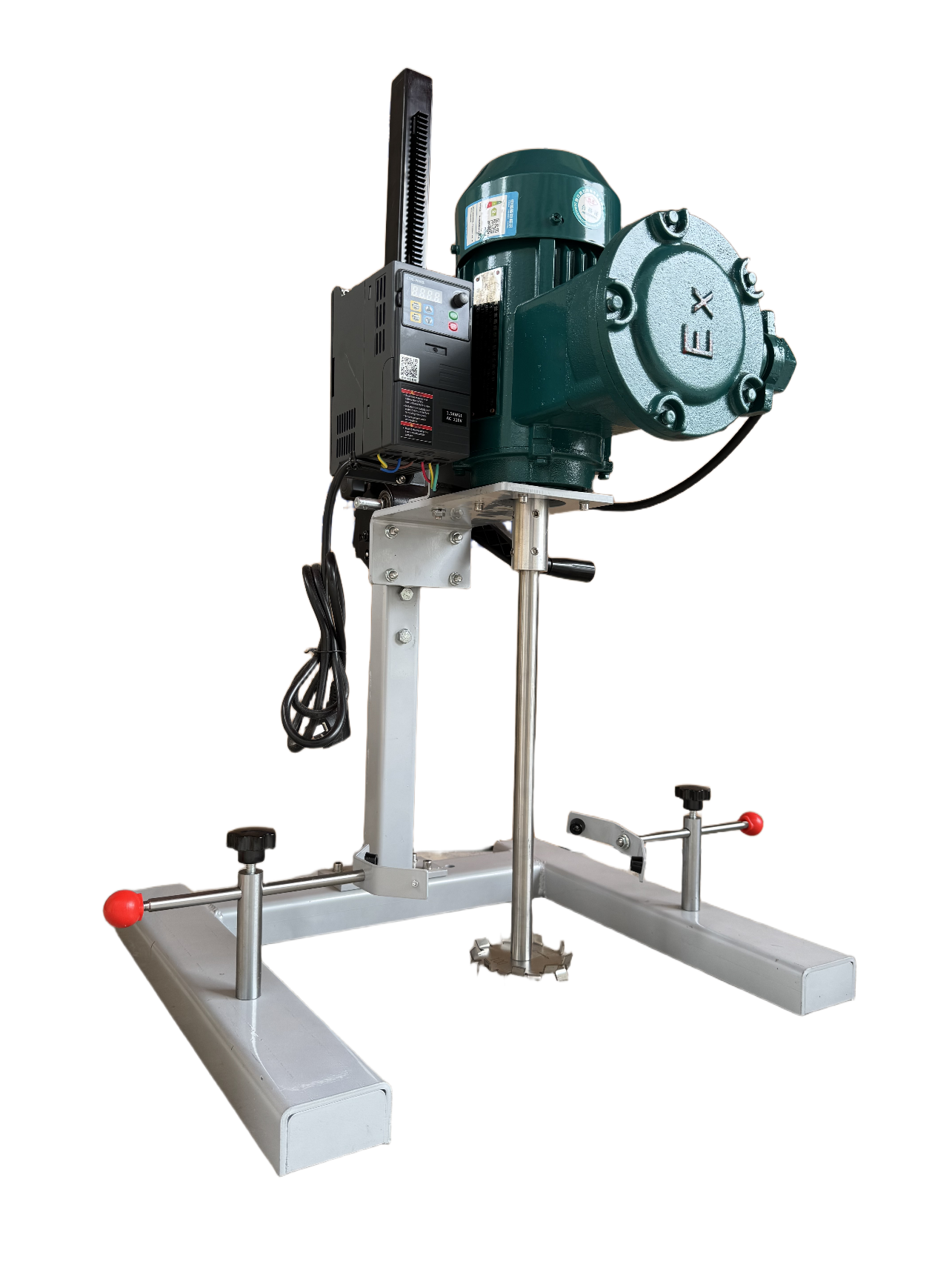

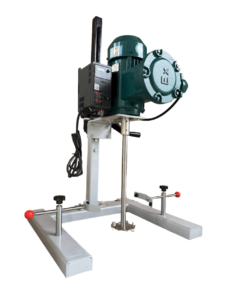

YKFS-1.5 Explosion-Proof High-Speed Disperser: Product Overview
The YKFS-1.5 Explosion-Proof High-Speed Disperser is a robust, industrial-grade mixing solution specifically designed for pilot-scale production and demanding laboratory environments. This 1.5KW powerhouse is meticulously engineered to handle larger material volumes of up to 50 liters, making it the ideal choice for processing highly viscous materials that require exceptional torque and strict explosion-proof safety standards. Featuring a premium electric lift system and advanced frequency conversion speed control, the YKFS-1.5 Explosion-Proof High-Speed Disperser provides the perfect balance of heavy-duty performance and precise operational ease.
Uncompromising Safety for Hazardous Environments
Safety is the foundational principle behind the YKFS-1.5 Explosion-Proof High-Speed Disperser. When processing solvent-based paints, volatile adhesives, or other combustible chemical compounds, standard laboratory equipment simply cannot mitigate the risk of vapor ignition. This unit is built with a certified explosion-proof motor and sealed electrical enclosures, designed specifically to comply with stringent industrial safety regulations (such as OSHA guidelines for combustible dust and vapors). By eliminating the risk of electrical sparking, operators can confidently process high-risk materials in hazardous zones without compromising facility safety.
The Electric Lift Advantage and VFD Control
Unlike manual crank models, the YKFS-1.5 Explosion-Proof High-Speed Disperser is equipped with a state-of-the-art electric lift system. With a generous 47 cm stroke, operators can raise and lower the heavy motor head with the simple push of a button. This ergonomic advantage drastically reduces physical strain and significantly speeds up workflow during frequent container changeovers or cleaning cycles. Coupled with an Industrial Frequency Conversion (VFD) drive, users gain stepless speed adjustment from 0 to 3,000 RPM. This means you can start at a low speed to prevent splashing, then seamlessly ramp up to high speeds for optimal shear force—all while the brushless motor maintains high torque and whisper-quiet operation.
Key Features & Advantages
- Explosion-Proof Safety Configuration: Designed for hazardous environments where volatile vapors are present, ensuring maximum operator safety during high-speed, sustained mixing.
- Electric Lift for Effortless Operation: Equipped with a motorized lift system (47cm stroke), allowing you to raise and lower the motor head with a simple switch—perfect for fast-paced industrial workflows.
- Industrial Frequency Conversion (VFD): Provides stable, stepless speed adjustment from 0 to 3,000 RPM while maintaining massive torque, even at lower RPMs.
- Reinforced 304 Stainless Steel Construction: The robust Ø 20mm shaft and 120mm dispersion disc are crafted from premium 304 stainless steel for superior chemical resistance and durability.
- Silent Brushless Technology: Combines a 1.5KW high-power output with low mechanical noise, creating a more sustainable and comfortable work environment compared to traditional brush motors.
Comprehensive Technical Specifications
Every component of the YKFS-1.5 Explosion-Proof High-Speed Disperser is built to exacting industrial standards. Review the precise technical data below:
| Specification | Value |
|---|---|
| Model | YKFS-1.5 Explosion-Proof Series |
| Motor Power | 1.5 KW |
| Voltage | 220V (380V Optional) |
| Speed Range | 0 – 3,000 RPM |
| Speed Control | Frequency Conversion (VFD) |
| Max Capacity | ≤ 50L (Depending on material viscosity) |
| Lift System | Electric Lift |
| Lift Stroke | 47 cm |
| Dispersion Shaft | Ø 20mm × 400mm (304 Stainless Steel) |
| Dispersion Disc | 120mm Diameter (304 Stainless Steel) |
| Machine Dimensions | 58 cm × 52 cm × 108 cm |
| Total Weight | 35 kg |
Standard Package Contents
Your YKFS-1.5 Explosion-Proof High-Speed Disperser is shipped factory-direct and ready for immediate deployment. The package includes:
- 1x 1.5KW Explosion-Proof Motor Unit and Base
- 1x 120mm 304 Stainless Steel Dispersion Disc
- 1x 400mm Reinforced Stainless Steel Shaft
- 1x Integrated Electric Lift Stand
- 1x Heavy-Duty Container Securement Set
Typical Industry Applications
Because of its 50-liter capacity and top-tier safety ratings, this disperser is trusted by professionals across various sectors, including:
- Chemical & Pharmaceutical Pilot Plants: Scaling up formulations safely before mass production.
- High-Viscosity Epoxy Resin: Rapid blending and efficient bubble removal in thick polymers.
- Industrial Coatings & Solvent-Based Paints: Safely dispersing pigments into highly flammable resin bases.
- Ink & Pigment Dispersion: Achieving ultra-fine particle reduction for consistent dye coloration.
Why Choose YAKU?
When you invest in the YKFS-1.5 Explosion-Proof High-Speed Disperser, you are securing a vital piece of reliable laboratory infrastructure. We invite you to view our full catalog of pilot-scale mixers to see our complete capabilities.
- Manufacturer Direct: Authentic YAKU equipment with absolutely no middleman markup.
- 365-Day Quality Warranty: Comprehensive protection and peace of mind for your investment.
- Technical Support: We have deep expertise in industrial de-aeration, high-speed dispersion, and fluid dynamics.
- Worldwide Shipping: Professional export-grade packaging ensures safe international delivery.
To discuss voltage modifications, request a custom shaft length, or place a bulk order for the YKFS-1.5 Explosion-Proof High-Speed Disperser, please contact our sales engineers directly via email or our live store chat.
