The YKFS-680 Automatic Lift Laboratory Disperser is designed for laboratories that require higher power, easier lifting operation, and stable digital speed control. Equipped with a 680W motor and 0–4000 rpm adjustable speed range, this digital high-speed disperser is suitable for mixing and dispersing low to medium viscosity materials.
Compared with 350W laboratory dispersers, the YKFS-680 provides stronger power and a larger processing capacity of up to 10L, making it suitable for more demanding sample testing and small batch formulation work. The automatic lift design allows the dispersing shaft to move up and down more conveniently, reducing manual operation and improving daily lab efficiency.
This automatic lift lab disperser is widely used for paint, ink, pigment paste, coating, resin, adhesive, emulsion, cosmetic samples, and chemical liquid testing.
Key Features
680W High-Power Laboratory Motor
The 680W motor provides stronger dispersion performance than entry-level 350W lab models, making it suitable for larger samples and more demanding laboratory applications.
Automatic Lift Design
The electric lift structure allows convenient height adjustment during operation, reducing manual handling and improving working efficiency.
Digital Speed Control
The built-in digital speed control system helps users adjust and monitor working speed more clearly during mixing and dispersion.
0–4000 rpm Adjustable Speed
The speed can be adjusted from 0 to 4000 rpm, suitable for different materials, viscosities, and formulation testing requirements.
Up to 10L Processing Capacity
With a processing capacity of up to 10L, this model is suitable for laboratory testing, R&D development, and small sample scale-up trials.
Removable Dispersing Disc
The removable dispersing disc makes cleaning, replacement, and daily maintenance more convenient.

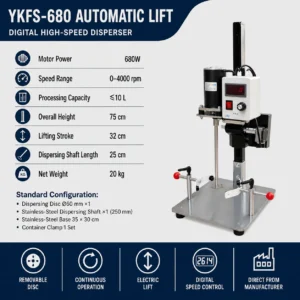

Technical Specifications
| Item | Specification |
|---|---|
| Model | YKFS-680 Automatic Lift |
| Product Type | 680W Automatic Lift Laboratory Disperser |
| Motor Power | 680W |
| Speed Range | 0–4000 rpm |
| Processing Capacity | ≤10L |
| Overall Height | 75 cm |
| Lifting Stroke | 32 cm |
| Dispersing Shaft Length | 25 cm |
| Dispersing Disc | Ø50 mm, 1 pc |
| Shaft Material | Stainless steel |
| Base Size | 35 × 30 cm |
| Container Clamp | 1 set |
| Net Weight | 20 kg |
| Speed Control | Digital speed control |
| Lifting Type | Electric / Automatic lift |
Applications
The YKFS-680 automatic lift laboratory disperser is suitable for:
Paint sample dispersion
Ink preparation
Pigment paste testing
Color paste mixing
Coating formulation development
Resin and emulsion blending
Adhesive and glue testing
Cosmetic sample preparation
Chemical liquid mixing
Laboratory R&D testing
Small batch formulation trials
Why Choose YKFS-680 Automatic Lift Laboratory Disperser?
The YKFS-680 is suitable for users who need more power and easier lifting operation than standard 350W laboratory dispersers. Its 680W motor, automatic lift system, digital speed control, and 10L processing capacity make it a practical choice for laboratories handling larger samples or more frequent testing work.
Compared with hand-crank or manual lift lab dispersers, this model provides more convenient lifting operation. Compared with 350W lab dispersers, it offers higher power and larger processing capacity.
FAQ
What is the main advantage of the YKFS-680 Automatic Lift Laboratory Disperser?
The main advantage is its combination of 680W motor power, automatic lift, and digital speed control, making it more efficient than smaller manual laboratory dispersers.
What is the processing capacity of this model?
The YKFS-680 supports up to 10L processing capacity, depending on material viscosity and testing requirements.
What is the speed range?
The speed range is 0–4000 rpm, allowing flexible adjustment for different mixing and dispersion processes.
What is the difference between YKFS-680 and 350W laboratory dispersers?
The YKFS-680 has higher motor power, larger capacity, and automatic lifting. It is more suitable for larger lab samples and more demanding formulation testing.
What materials can this lab disperser process?
It can be used for paint, coating, ink, pigment paste, resin, adhesive, emulsion, cosmetic samples, and chemical liquids.
